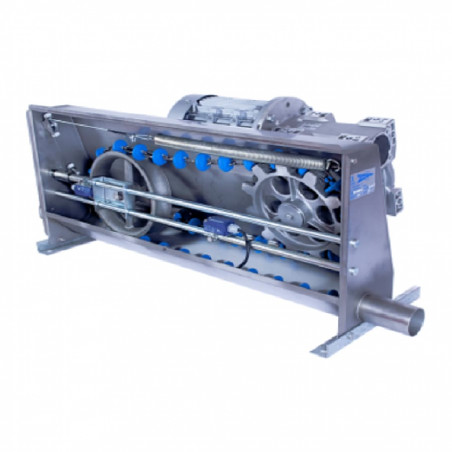

Drive unit UAC 6026 / 2cv B3 stainless steel. Trif (Super-slow / Belt)

ref.: 306022

It is the traction system that moves the drag circuits by chain. The machine has a toothed pulley that pulls the chain so that the cleats drag the feed inside the tube. It consists of an electric motor and a reducer that give the whole a great pulling power to be able to carry out circuits of high length with a considerable number of angles. It has a safety stop system in case of possible jams or breakages.Characteristics Power: 2 Hp Three-phase Traction sp

Quantity	> 2
Precio unitario	€1,228.55

Characteristics Power: 2 Hp Three-phase Traction speed: 10 meters / minute Chassis and box: Stainless steel Tube outlet: 60 mm Drag capacity table circuit meters/number of 90º angles: Meters 425 395 365 335 305 275 245 215 185 Elbows 8 10 12 14 16 18 20 22 24 Drive unit uac602/2

Do you need more information about this product? We help you. Call to 976 67 78 65 or contact us.
